Overview

What you can do with this unit

Inserting the battery

Operating range of the remote control unit

Part names and functions

Remote control unit

Positioning the sound bar

Positioning the subwoofer

Connections

Connecting a TV

TV equipped with an HDMI connector and compatible with the eARC (Enhanced Audio Return Channel) or ARC (Audio Return Channel)

TV equipped with an HDMI connector and incompatible with the eARC or ARC / TV equipped with an optical digital connector

TV equipped with an HDMI connector and incompatible with the eARC or ARC / TV equipped with an analog connector

Connecting a playback device

Connecting an HDMI device

Connecting the power cords

Playback

Playing TV, movies and music

Turning on the power of the subwoofer

Adjusting the volume

Adjusting the subwoofer volume

Turning off the sound temporarily (Muting)

Playing music on a Bluetooth device

Pairing a Bluetooth device for the first time

Pairing with other Bluetooth devices

Playing music with a paired Bluetooth device

Getting the HEOS App

Setting up first HEOS built-in device

Adding more HEOS built-in devices

Playing from streaming music services

Listening to the same music in multiple rooms

Listening to Internet Radio

Playing music stored on your mobile

Playing back files stored on a PC or NAS

Playing music from a USB flash drive

AirPlay function

Playing songs from your iPhone, iPod touch or iPad

Playing iTunes music with this unit

Play a song from your iPhone, iPod touch or iPad on multiple synced devices (AirPlay 2)

Spotify Connect function

Settings

Adjusting the dialogue sound

Setting the night mode

Setting the sound mode

Operating this unit using the remote control of a TV

Connecting the sound bar and subwoofer manually

Setting the input source to switch with the TV button on the remote control unit

Tips

Troubleshooting

Power does not turn on / Power is turned off

Operations cannot be performed through the remote control unit

Trouble teaching this unit remote control commands

No sound comes out

Music cuts out or delays sometimes

The HDMI control function does not work

Audio can be heard coming from the TV’s speakers

I hear a delay when using the external input with my TV

Bluetooth playback does not work

Cannot connect the sound bar to the network

Connecting to a network using an iOS device

Connecting to a WPS network

This unit takes long time to turn on

Resetting factory settings

Resetting the firmware to the default state

Appendix

Power management

Status LED table

Supported file types and codecs

Supported audio formats (Optical)

Trademark information

Subwoofer

General


Wireless Technology:	5.2 GHz/5.8 GHz frequency hopping
Operating temperature:	41 °F - 95 °F (5 °C - 35 °C)
Power supply:	AC 120 V, 60 Hz
Power consumption:	40 W
Power consumption in Quick Start Mode:	0.5 W

Dimensions (Unit : in. (mm))

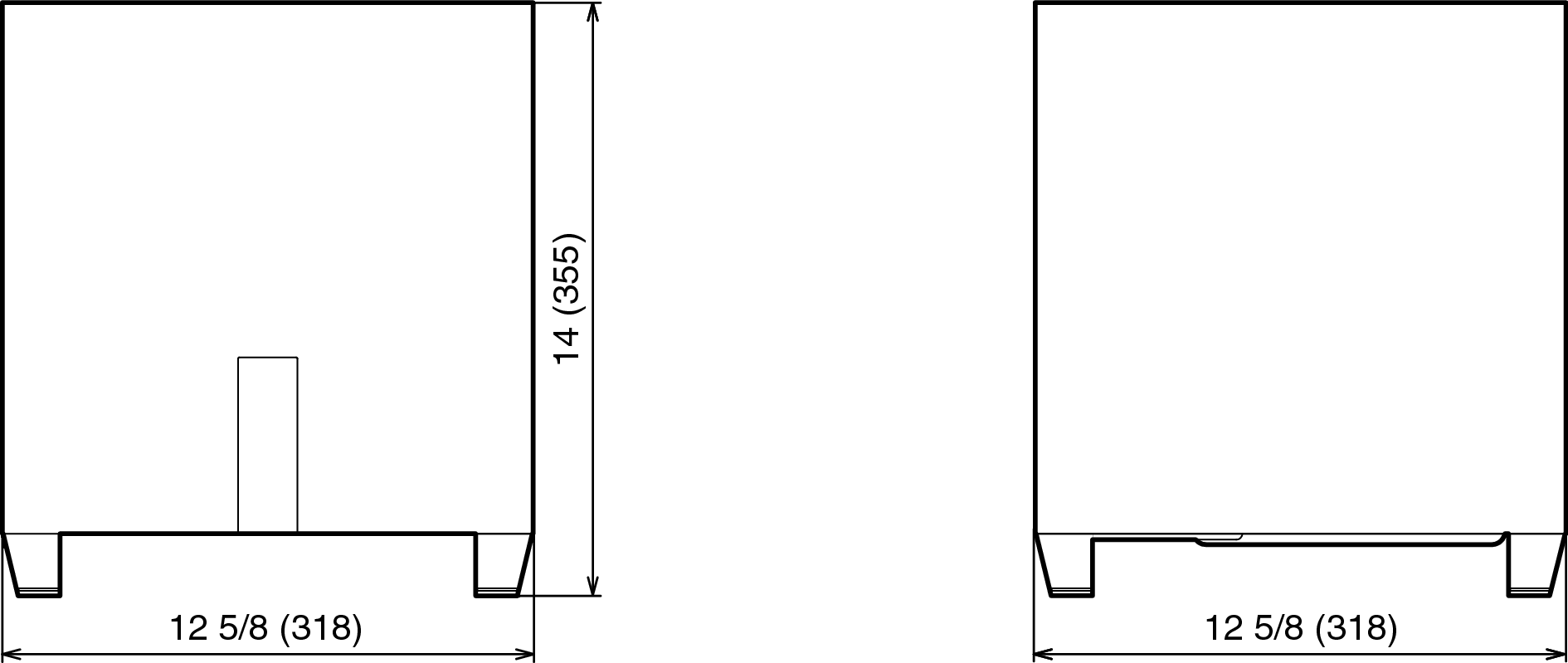

Size Sub Studio3DMini

Weight: 20 lbs 1 oz (9.1 kg)
