Inserting the battery

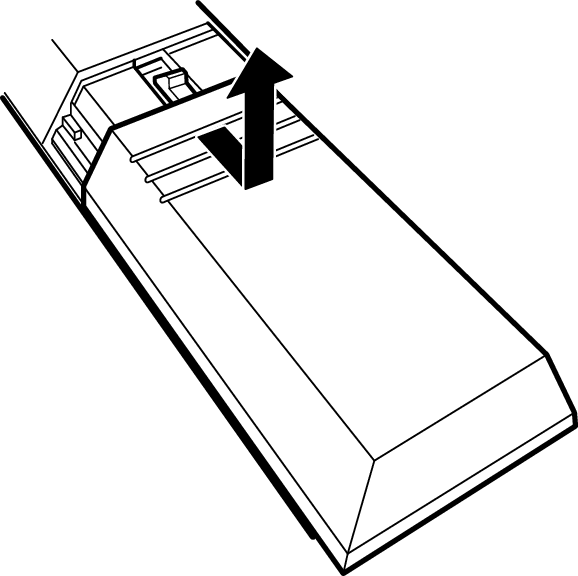

Slide the rear lid off the remote control unit in the arrow direction.
Pict Insert battery1 Studio3DMini

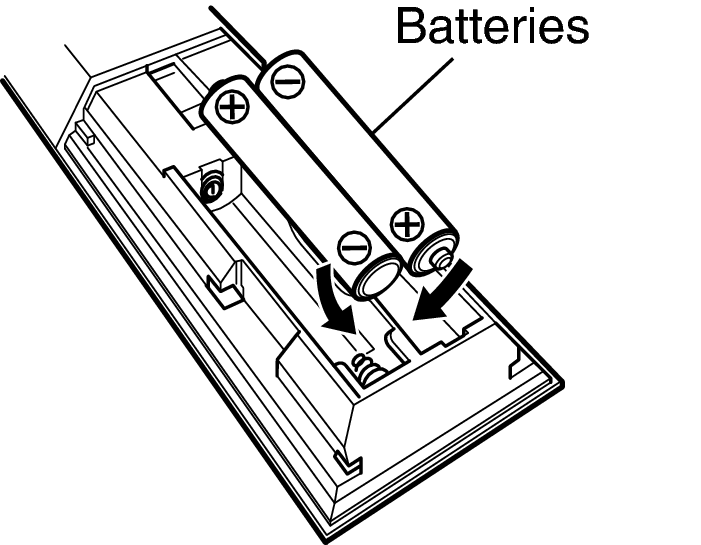

Insert two batteries correctly into the battery compartment as indicated.
Pict Insert battery2 Studio3DMini
Put the rear lid back on.
NOTE

Remove the battery from the remote control unit if it will not be in use for long periods.

If the battery fluid should leak, carefully wipe the fluid off the inside of the battery compartment and insert new battery.
